DIY build of a gantry milling machine with standalone controller and auto tool change

Overview

In 2017 I decided to build a gantry milling machine  - "as rigid as possible" and "as cheap as possible".

Now, two years later, the machine works fine - with the help of Google, the Web and a lot of trial and error.

To serve as a document for myself and to give some tips to other users (especially dealing with the standalone controller DDCSV 1.1/2/3) I decided to write this web site.

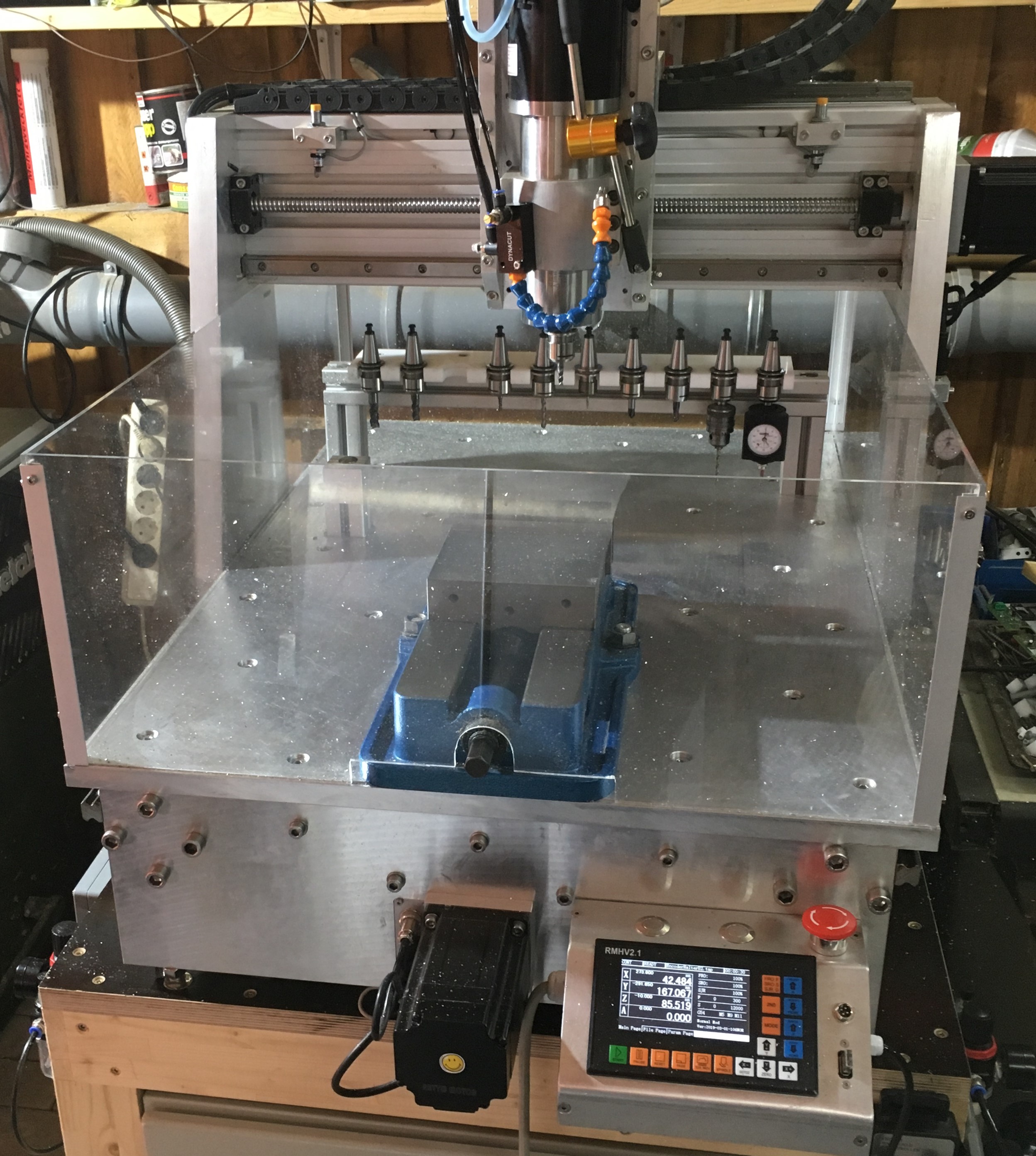

View of the CNC including Tool-Changer and Shaving Protection

This site focuses on the electronic parts of the CNC - the mechanic is not described in detail. I think, there a enough other sources on the web dealing with this.

Click on the following links to get more detailed information:

• Main overview of the CNC
• Stand alone controller DDCSV 1.1
• Motors and motor drivers
• Home and limit switches
• Auto tool change spindle
• IO-Expansion of the controller
• Auto probing tools and tool length compensation
• The CNC in action - some videos

If you want to contact me, please drop me an eMail using the contact page.

April 2019, Josef Pöpsel

--> Continue with Main overview of the CNC
