[back] NGC 7293 (Helix Nebula) in Aquarius [NED]

Higher resolved image / höher aufgelöstes Bild

 (c) 2004 All astro photo images are copyrighted. They may not be used or reproduced without explicit written permission from the authors.



60"



About this Image / Über dieses Bild

CCD: ST10 XME
Image Type, Orientation: L+Ha, R,OIII,B Composite, North is at 0:15
Exposure time: L: 8 x 300 sec 1x1, Ha: 8 x 300 sec. 1x1, R,OIII,B: 4 x 300 sec. 2x2
Exposure date: September 14th, 2004
Location: Capella Observatory at Amani Lodge, Kupferberg near Windhoek, Namibia
Filter: FR03 + Astronomik
Typ II L, Ha, R, OIII, B filters
Instrument: Ganymed 60cm-Hypergraph in primary focus, f=1800 mm
Seeing (FWHM): 3.5"
Photographer: Josef Pöpsel

Remarks:

The peculiar shape of this huge but dim PN is the result of projecting the 3D shape, a spiral spring, onto the image (see images below). Also interesting are the details in the Ha and OIII images (see below).

Image processed with CCDSharp and DDP.





Bemerkungen:

Die eigenartige Form dieses riesigen PN ist das Ergebnis der Projektion seiner 3D-Form (eine Spiralfeder) auf das Bild (siehe Bilder unten). Ebenfalls interessant sind die Details in den Ha und OIII Bildern (siehe unten).

Das Bild wurde mit Hilfe von CCDSharp und DDP bearbeitet.



B&W image of the Ha exposure of the Helix Nebula.

B&W image of the OIII exposure of the Helix Nebula.

S/W-Bild der Ha-Aufnahme des Helix-Nebels. S/W-Bild der OIII-Aufnahme des Helix-Nebels.


Higher contrast image of the Ha exposure

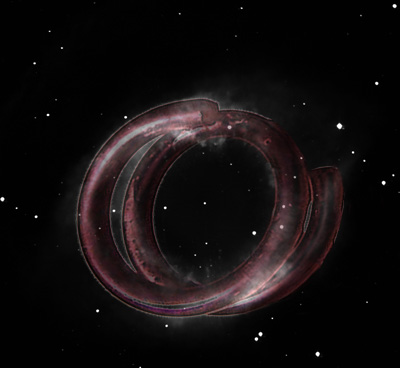

Superimposed photo of a spiral spring to

illustrate the shape of NGC 7293.

Kontrastreicheres Bild der Ha-Aufnahme.

Überlagertes Photo einer Spiralfeder, um die

Form von NGC  7293 zu verdeutlichen.
